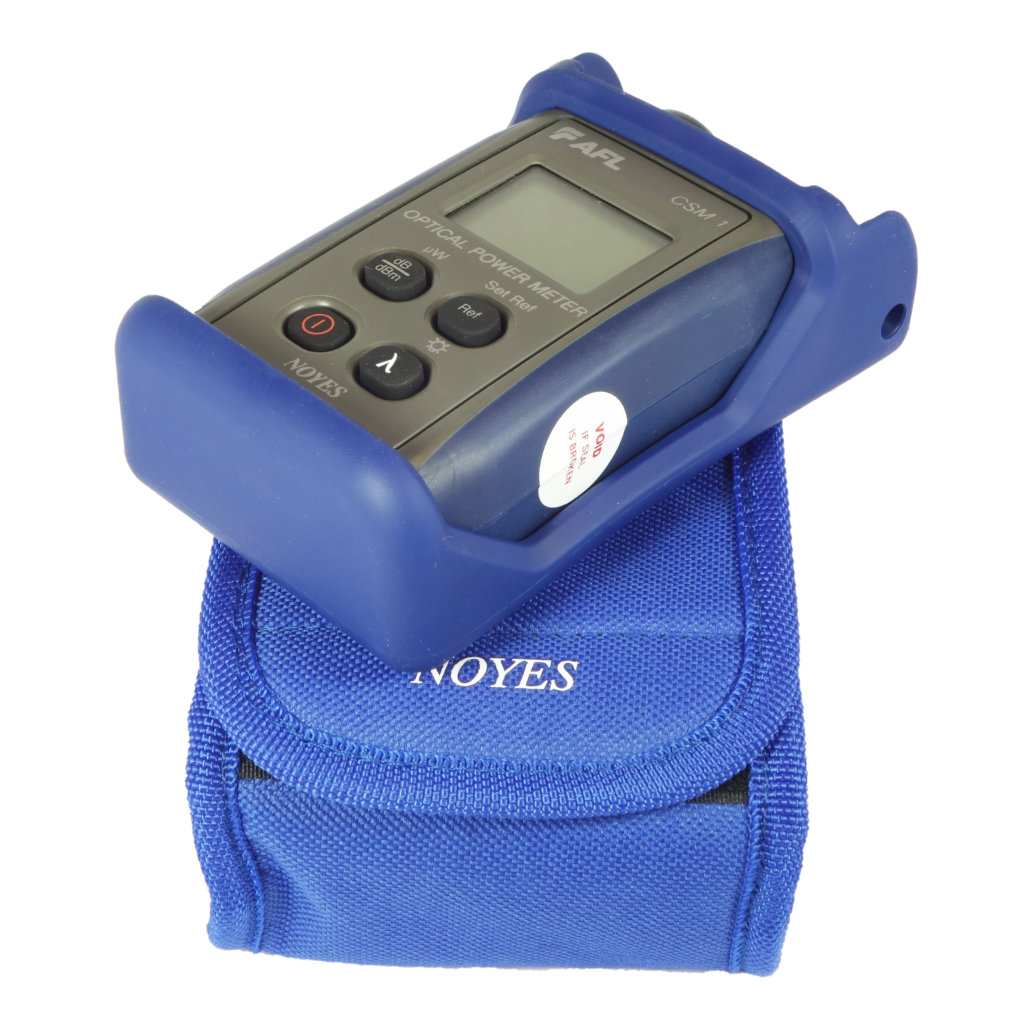

CSM1-3 Power Meter with INGAAS Detector

Original price was: €451,00.Current price is: €451,00. + (VAT)

CSM1-3 Contractor Series Single and Multi Mode Power Meter is quality tool designed for loss measurements over fibre optic networks. Small palm-sized units are ideal for field use. Sized to carry and built tough to endure the rigours of outside plan work enviroments.

Additional Discount Range
3% 2 +
Add to RFQ
SKU: 260101 Categories: , ,

Description

These power meter models provide wide wavelength and power level ranges and storing optical references for each calibrated wavelength. Auto-detects Test Tones for use in fiber identification.

Delivered with FC, SC, ST, LC, 2.5 mm or 1.25 mm connector adapter. Other connector styles are available – see accessories section or ask.

Features:

  • Palm-sized rugged, dependable tools
  • 5-Year Product Warranty
  • 3-Year Calibration
  • Large sunlight readable display

Applications:

  • Link loss measurements
  • Certify SM and MM links to industry standards
  • Continuity check and fiber identification prior to fusion splicing

Download manufacturer datasheet here.

Link to manufacturers homepage here.

Additional information

Wavelenghts:

850, 1300, 1310, 1490, 1550, 1625
Detector Type

InGaAs
Measurement Range

+6 to -70 dBm
Tone Detect Range

+6 to -50 dBm
+6 to -45 dBm for 850 nm
Accuracy

± 0.3 dB @ 25 °C and -10 dBm per N.I.S.T. standard
Resolution

0.01 dB
Battery Life

>300 hours ( 2xAA batteries )
Operating Temperature

-10 °C to 50 °C, 90 % RH (non-condensing)
Size (H x W x D)

14.0 x 8.1 x 3.8 cm
