€49,50 – €165,00 + (VAT)
Whether installing or troubleshooting, the Visual Fault Locator (VFL) is an essential tool that quickly and easily locates problem areas in fiber cables. By pinpointing the exact location of fiber damage, technicians can diagnose, troubleshoot, and fix the problem efficiently. The VFL is also used for conducting continuity tests and performing fiber identification.
| Additional Discount | Range |
|---|---|
| 3% | 2 + |

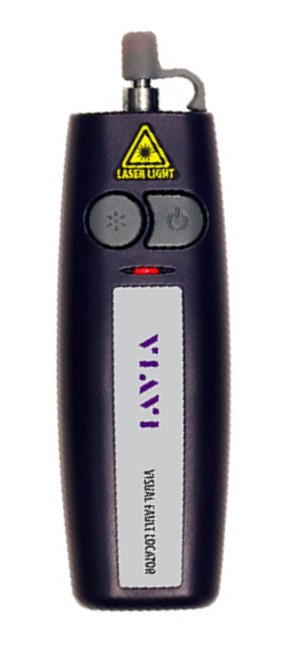

FFL-50 Visual Fault Locator is portable and compact VFL.
Compact, ergonomic design for ultimate portability
Visible wavelength is 650 nm
High powered laser (1 mW) for single-mode (> 7 km) and multi-mode (> 5 km) connectors
Continuous or Flash illumination
Universal connector interface for quick and easy connection
2.5 mm connector input with 1.25 mm adapter sold separatelyIncludes soft-sided carrying case with belt loop
| Power | 1.0 mW max |
|---|---|
| Operation Mode | Continuous and flashing |
| Wavelength | 650 nm (visible) |
| Casing | Plastic, miniature |

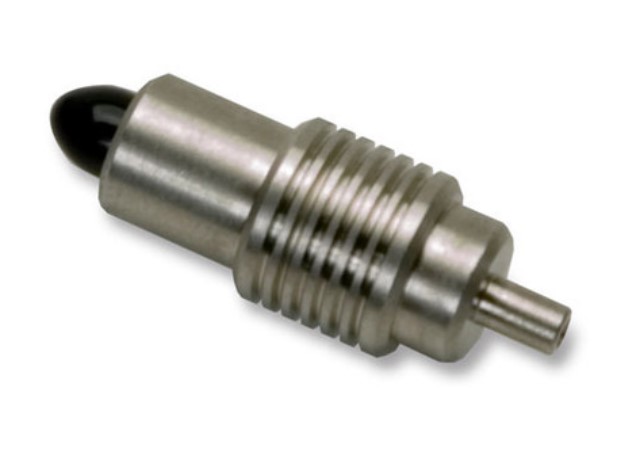

| Connector | Universal 2.5 mm (fixed) and universal 1.25 mm adapter sold separately |
| Dimensions | 114 x 30 x 20 mm, 46 g with two AA batteries |
| Fiber Compatibility | Single-mode up to 7km, Multimode up to 5km |
| Battery | 2xAAA |
| Battery life | > 30 h |
Only 1 left in stock
Lead time / Tarneaeg: 2 - 5 weeks
